Aplicaciones Comerciales

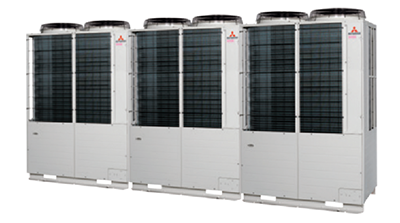

VRF’S de Mitsubishi Heavy Industries son para usos comerciales.
Conectividad
Conecta máximo 80 evaporadoras / hasta 130% de capacidad
Eficiencia
Alta eficiencia con COP (en frío) hasta 3.7
Tecnología
Todos los compresores de MHI usan tecnología inverter.
Especificaciones
| Item | Unit | FDC735KXZE1M | FDC800KXZE1M | FDC850KXZE1M | FDC900KXZE1M | FDC950KXZE1M | FDC1000KXZE1M | FDC1060KXZE1M | FDC1120KXZE1M | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Horse Power | 26HP | 28HP | 30HP | 32HP | 34HP | 36HP | 38HP | 40HP | |||
| Power Source | 3 Phase-3wire 220V, 60Hz | ||||||||||
| Starting Current | A | 10 | 16 | ||||||||
| Max Current | A | 53.2 | 64 | 84.8 | |||||||
| Nominal Capacity | Cooling | kW | 73.5 | 80 | 85 | 90 | 95 | 100 | 106 | 112 | |
| Heating | 82.5 | 90 | 95 | 100 | 106 | 112 | 119 | 126 | |||
| Electrical Characteristics | Power Consumption | Cooling | kW | 19.92 | 21.92 | 24.94 | 27.96 | 27.96 | 27.94 | 30.59 | 33.24 |
| Heating | 19.73 | 21.38 | 23.19 | 25 | 26 | 26.98 | 29.44 | 31.9 | |||
| Exterior Dimensions | HxWxD | mm | 2048x2700x720 | ||||||||
| Net Weight | kg | 587 | 642 | 734 | |||||||
| Refrigerant Charge | R410A | kg | 11.0+11.5 | 11.5x2 | |||||||
| Refrigerant Piping Size | Liquid Line | mm (in) | ?15.88 (5/8") | ?19.05 (3/4") | |||||||
| Gas Line | ?31.75 (1 1/4") [?34.92 (1 3/8")] | ?38.1 (1 1/2") [?34.92 (1 3/8")] | |||||||||
| Capacity Connection | % | 50~130 | |||||||||
| Number of Connectable Indoor Units | 63 | 69 | 73 | 78 | 80 |
