Capacidades (BTU)
• 24,000 • 36,000 • 48,000 • 52,000 •
Voltage
• 208~230V, 60Hz, 1Ph •
Refrigerante
• R410A •
Garantía
• 1 año en piezas y 5 años del compresor •
Especificaciones
| Indoor Model | AFCEL4H4S24 | AFCEL4H4S36 | AFCEL4H4S48 | AFCEL4H4S60 | ||
|---|---|---|---|---|---|---|
| Outdoor Model | AFCCI4H4S24 | AFCCI4H4S36 | AFCCI4H4S48 | AFCCI4H4S60 | ||
| Power supply (Indoor) | V/Ph/Hz | 220-230/1/60 | 220-230/1/60 | 220-230/1/60 | 220-230/1/60 | |
| Power supply (Outdoor) | V/Ph/Hz | 220-230/1/60 | 220-230/1/60 | 220-230/1/60 | 220-230/1/60 | |
| Max. input consumption | W | 4100 | 5100 | 7000 | 8200 | |
| Max. input current | A | 18.1 | 22.5 | 32.0 | 37.3 | |
| Cooling (Declare value for Mexice) | Capacity | Btu/h | 24000 | 36000 | 48000 | 52000 |
| Capacity | kW | 7.03 | 10.50 | 14.07 | 15.24 | |
| Capacity range | kW | 2.700~7.850 | 2.800~11.000 | 3.100~16.100 | 3.200~17.000 | |
| Input | W | 2400 | 4390 | 6400 | 7560 | |
| Current | A | 10.7 | 19.6 | 28.6 | 33.4 | |
| EER | W/W | 2.93 | 2.39 | 2.20 | 2.02 | |
| SEER | Btu/W | 17.0 | 16.0 | 16.00 | 15.00 | |
| Heating (Declare value for Mexice) | Capacity | Btu/h | 27000 | 39000 | 55000 | 60000 |
| Capacity | kW | 7.91 | 11.40 | 16.12 | 17.58 | |
| Capacity range | kW | 2.770~9.200 | 3.320~12.000 | 3.300~18.000 | 2.700~19.000 | |
| Input | W | 2400 | 3880 | 5600 | 6310 | |
| Current | A | 10.7 | 17.4 | 24.8 | 27.9 | |
| COP | W/W | 3.30 | 2.94 | 2.88 | 2.79 | |
| Indoor fan motor | Model | SIC-70CW-F1100-6 | SIC-101CW-F1181-2 | SIC-101CW-F1181-2 | SIC-101CW-F1181-2 | |
| Qty | 1 | 1 | 1 | 1 | ||
| Output | W | 100 | 181 | 181 | 181 | |
| Capacitor | uF | NA | NA | NA | NA | |
| Speed(Hi/Med/Lo) | r/min | 1280/1100/920 | 1100/1000/900 | 1250/1000/800 | 1250/1100/950 | |
| Indoor coil | Number of rows | 3 | 3 | 3 | 3.5 | |
| Tube pitch(a)*row pitch(b) | mm | 21x13.6 | 21x13.6 | 21×13.6 | 21×13.6 | |
| Fin spacing | mm | 1.5 | 1.5 | 1.5 | 1.5 | |
| Fin type | Hydrophilic aluminium | Hydrophilic aluminium | Hydrophilic aluminium | Hydrophilic aluminium | ||
| Tube outside dia.and type | mm | ?7,innergroove tube | ?7, innergroove tube | ?7.0, innergroove tube | ?7.0, innergroove tube | |
| Coil (LxHxW) | mm | 660x336x40.8 | 1200x336x40.8 | 1200×336×40.8 | 1200×336×54.4 | |
| Number of circuits | 3 | 7 | 7 | 7 | ||
| Indoor air flow Rated(Hi/Med/Lo) | m3/h | 1100/950/800 | 1700/1500/1300 | 2000/1600/1200 | 2000/1700/1500 | |
| Indoor air flow Rated(Hi/Med/Lo) | CFM | 650/570/500 | 1059/941/824 | 1180/940/710 | 1180/1000/880 | |
| ESP | Rated | Pa | NA | NA | NA | NA |
| Range | Pa | NA | NA | NA | NA | |
| Indoor noise level (Sound pressure) (Hi/Med/Lo) | dB(A) | 51/48/45 | 52/50/47 | 53/48/42 | 53/50/47 | |
| Indoor noise level (Sound power) | dB(A) | 63 | 66 | 67 | 66 | |

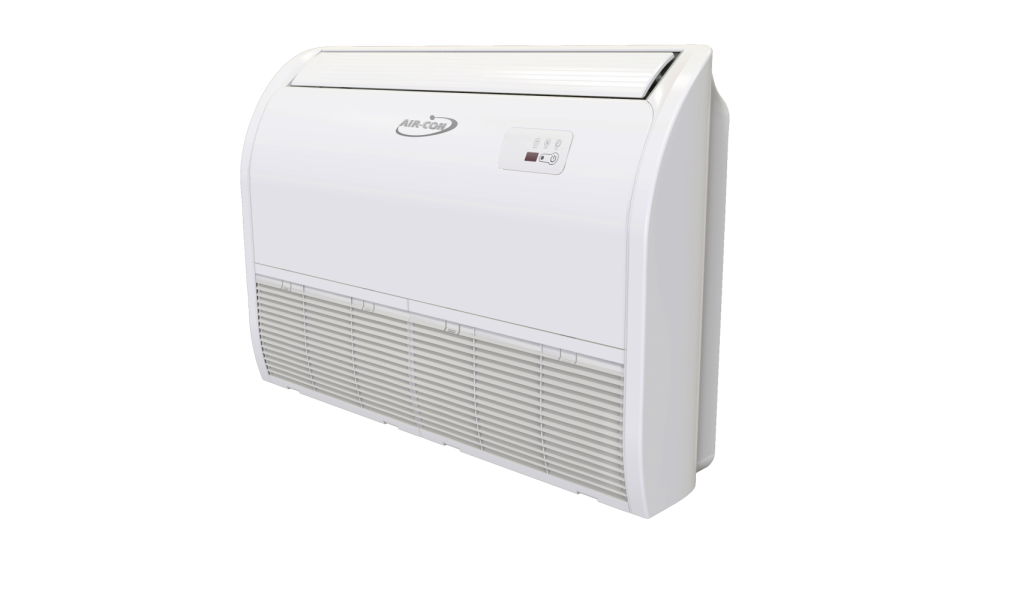

| Indoor unit | Dimension (WxHxD) | mm | 990x230x680 | 1285x230x680 | 1580x230x680 | 1580x230x680 |
| Packing(WxHxD) | mm | 1100x350x820 | 1400x350x820 | 1690x350x820 | 1690x350x820 | |
| Net/Gross weight | kg | 30/35 | 37/44 | 48/56 | 50/58 | |
| Panel | Dimension (WxHxD) | mm | --- | --- | --- | --- |
| Packing(WxHxD) | mm | --- | --- | --- | --- | |
| Net/Gross weight | kg | --- | --- | --- | --- | |
| Drainage water pipe diameter | mm | OD?25 | OD?25 | OD?25 | OD?25 | |
| Controller | Remote control | Remote control | Remote control | Remote control | ||
| Operation temperature | ? | 16~30 | 16~30 | 16~30 | 16~30 | |
| Qtyper 20 /40 /40'HQ (Indoor unit) | Set | 84/168/196 | 66/132/153 | 42/84/98 | 42/84/98 | |
| Compressor | Model | ATF235D43UMT | ATF310D43UMT | ATH356SDPC9FL | LNB42FSCMC | |
| Type | ROTARY | ROTARY | ROTARY | ROTARY | ||
| Brand | GMCC | GMCC | Hitachi | MITSUBISHI | ||
| Capacity | Btu/h | 24361 | 32380 | 34470 | 47699 | |
| Input | W | 1940 | 2600 | 3155 | 4270 | |
| Rated current(RLA) | A | 8.9 | 5.1 | 13.2 | 12.0 | |
| Refrigerant oil | ml | POE VG74/670 | PQE VG74/1000 | ? 68HES-H or equivalent /1650 | FV50S or PVE/1400 | |
| Outdoor fan motor | Model | SIC-61FW-F161-1 | SIC-71FW-D8121-1 | YDK65-6-9061& YDK65-6-9024 | YDK65-6-9061& YDK65-6-9024 | |
| Qty | 1 | 1 | 2 | 2 | ||
| Output | W | 61 | 121 | 121 | 121 | |
| Capacitor | ?F | NA | NA | NA | NA | |
| Speed (Hi) | r/min | 880 | 830 | 810 | 810 | |
| Outdoor coil | Number of rows | 2 | 2 | 2 | 2 | |
| Tube pitch(a)* row pitch(b) | mm | 21x18.19 | 21x21.65 | 21×21.65 | 21×21.65 | |
| Fin spacing | mm | 1.4 | 1.3 | 1.5 | 1.4 | |
| Fin type | Hydrophilic aluminium | Hydrophilic aluminium | Hydrophilic aluminium | Hydrophilic aluminium | ||
| Tube outside dia.and type | mm | ?7,innergroove tube | ?7.94, innergroove tube | ?7.94,innergroove tube | ?7.94,innergroove tube | |
| Coil (LxHxW) | mm | 900x630x43.3 | 970x798x43.3 | 970×1344×43.3 | 970×1344×43.3 | |
| Number of circuits | 4 | 5 | 6 | 8 | ||
| Outdoor noise level (Sound pressure) Hi | dB(A) | 53 | 56 | 56 | 57 | |
| Outdoor noise level (Sound power) | dB(A) | 68 | 70 | 69 | 73 | |
| Throttle type | EEV | EEV | EEV | EEV | ||

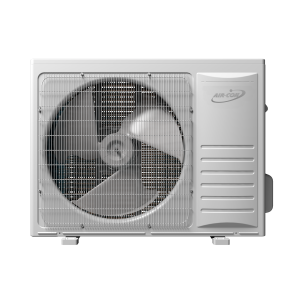

| Outdoor unit | Dimension(WxHxD) | mm | 860x670x310 | 950x840x340 | 950x1386x340 | 950x1386x340 |
| Packing(WxHxD) | mm | 990x730x450 | 1110x910x460 | 1110x1530x460 | 1110x1530x460 | |
| Net/Gross weight | kg | 51/57 | 70/75 | 113/125 | 117/129 | |
| Refrigerant type/Quantity | Type | R-410A | R-410A | R-410A | R-410A | |
| Charged volume | kg | 1.70 | 2.80 | 3.78 | 3.95 | |
| Design pressure | MPa | 4.15/1.6 | 4.15/1.6 | 4.15/1.6 | 4.15/1.6 | |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | ?9.52/?15.88(3/8'/5/8') | ?9.52/?19.05(3/8'/3/4') | ?9.52/?19.05(3/8'/3/4') | ?9.52/?19.05(3/8'/3/4') |
| Max. pipe length | m | 50 | 50 | 50 | 50 | |
| Max. difference in level | m | 30 | 30 | 30 | 30 | |
| Ambient temperature | Cooling | ? | 18~43 | 18~43 | 18~43 | 18~43 |
| Heating | ? | -7~24 | -7~24 | -7~24 | -7~24 | |
| Qtyper 20 /40 /40'HQ (Outdoor unit) | Set | 90/186/186 | 52/106/106 | 26/53/53 | 26/53/53 | |
| Qtyper 20 /40 /40'HQ | 42/85/98 | 32/67/72 | 20/40/53 | 20/40/53 |
