Aplicaciones Comerciales

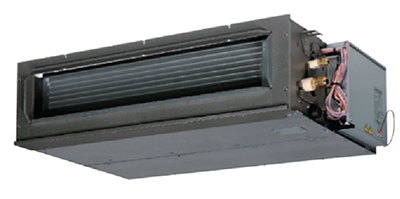

VRFs de Mitsubishi Heavy Industries son para usos comerciales.
Especificaciones
| Item | Unit | FDU45KXE6F | FDU56KXE6F | FDU71KXE6F | FDU90KXE6F | FDU112KXE6F | FDU140KXE6F | FDU160KXE6F | FDU224KXE6F | FDU280KXE6F | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Cooling Capacity | kW | 4.5 | 5.6 | 7.1 | 9 | 11.2 | 14 | 16 | 22.4 | 28 | |||
| Nominal Heating Capacity | kW | 5 | 6.3 | 8 | 10 | 12.5 | 16 | 18 | 25 | 31.5 | |||
| Power Source | 1 Phase 220V, 60Hz | 1 Phase 220V, 60Hz | |||||||||||
| Power Consumption | Cooling | kW | 0.1 | 0.24 | 0.31 | 0.35 | 0.42 | 1.16 | 1.16 | ||||
| Heating | 0.1 | 0.24 | 0.31 | 0.35 | 0.42 | 1.16 | 1.16 | ||||||
| Sound Power Level | dB(A) | 60 | 65 | --- | ---- | ||||||||
| Sound Pressure Level | dB(A) | Hi: 32 Me: 29 Lo: 26 | Hi: 33 Me: 29 Lo: 25 | Hi: 38 Me: 36 Lo: 30 | Hi: 40 Me: 34 Lo: 29 | Hi: 40 Me: 35 Lo: 30 | Hi: 50 Me: 47 Lo: 45 | ||||||
| Exterior Dimensions H x W x D | mm | 280x750x635 | 280x950x635 | 280x1370x740 | 379x1600x893 | ||||||||
| Net Weight | kg | 29 | 34 | 54 | 89 | ||||||||
| Air Flow (Standard) | m3/min | Hi: 10 Me: 9 Lo: 8 | Hi: 19 Me: 15 Lo: 10 | Hi: 28 Me: 25 Lo: 19 | Hi: 32 Me: 26 Lo: 20 | Hi: 35 Me: 28 Lo: 22 | Hi: 72 Me: 64 Lo: 56 | ||||||
| Maximum External Static Pressure | Pa | 200 | 200 | ||||||||||
| Outside Air Intake | Possible | Possible (on Return Duct) | |||||||||||
| Air Filter | Procure Locally | Procure locally | |||||||||||
| Remote Control (option) | wired: RC-EX3, RC-E5, RCH-E3 wireless: RCN-KIT4-E2 | wired: RC-EX3, RC-E5, RCH-E3 wireless: RCN-KIT4-E2 | |||||||||||
| Refrigerant Piping Size | mm (in) | Liquid Line: ?6.35 (1/4") Gas Line: ?12.7 (1/2") | Liquid Line: ?9.52 (3/8") Gas Line: ?15.88 (5/8") | Liquid Line: ?9.52 (3/8") Gas Line: ?19.05 (3/4") | Liquid Line: ?9.52 (3/8") Gas Line: ?22.22 (7/8") |
