Aplicaciones Comerciales
VRF’S de Mitsubishi Heavy Industries son para usos comerciales.
Conectividad
Conecta máximo 24 evaporadoras / hasta 150% de capacidad
Eficiencia
Alta eficiencia con COP (en frío) hasta 4.0
Tecnología
Todos los compresores de MHI usan tecnología inverter.

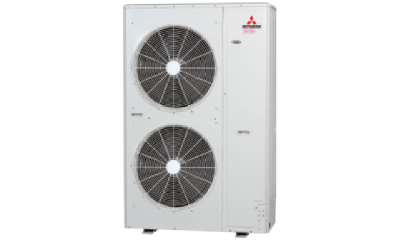

Especificaciones - MHI KXZ ODU2 8, 10, 12 HP
| Item | Unit | FDC224KXE6M | FDC280KXE6M | FDC335KXE6M | FDC224KXE6G | FDC280KXE6G | FDC335KXE6G | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Horse Power | 8HP | 10HP | 12HP | 8HP | 10HP | 12HP | ||||
| Power Source | 3 Phase-3wire 220V, 60Hz / 3 Phase-4wire 220V, 60Hz | 3 Phase 380V, 60Hz | ||||||||
| Starting Current | A | 5 | 6 | 5 | ||||||
| Max Current | A | 33 | 35 | 36 | 20 | 20 | 23 | |||
| Nominal Capacity | Cooling | kW | 22.4 | 28 | 33.5 | 22.4 | 28 | 33.5 | ||
| Heating | 25 | 31.5 | 37.5 | 25 | 31.5 | 37.5 | ||||
| Electrical Characteristics | Power Consumption | Cooling | kW | 5.85 | 8.57 | 9.82 | 5.6 | 8.09 | 9.82 | |
| Heating | 6.38 | 8.7 | 10.12 | 6.03 | 8.21 | 10.12 | ||||
| Exterior Dimensions | HxWxD | mm | 1675x1080x480 | |||||||
| Net Weight | kg | 212 | 215 | 218 | ||||||
| Sound Pressure Level | Cooling/Heating | dB(A) | 58/58 | 59/60 | 61/61 | 58/58 | 59/60 | 61/61 | ||
| Refrigerant | Type/GWP | R410A/2088 | ||||||||
| Charge | kg/TCO2Eq | 11.5/24.012 | ||||||||
| Refrigerant Piping Size | Liquid Line | mm (in) | ?9.52 (3/8?) | ?12.7 (1/2?) | ?9.52 (3/8?) | ?12.7 (1/2?) | ||||
| Gas Line | ?19.05 (3/4?) | ?22.22 (7/8?) | ?25.4 (1?) [?28.58 (1 1/8?)] | ?19.05 (3/4?) | ?22.22 (7/8?) | ?25.4 (1?) [?28.58 (1 1/8?)] | ||||
| Capacity Connection | % | 50~150 | ||||||||
| Number of Connectable Indoor Units | 22 | 24 | 24 | 22 | 24 | 24 |
